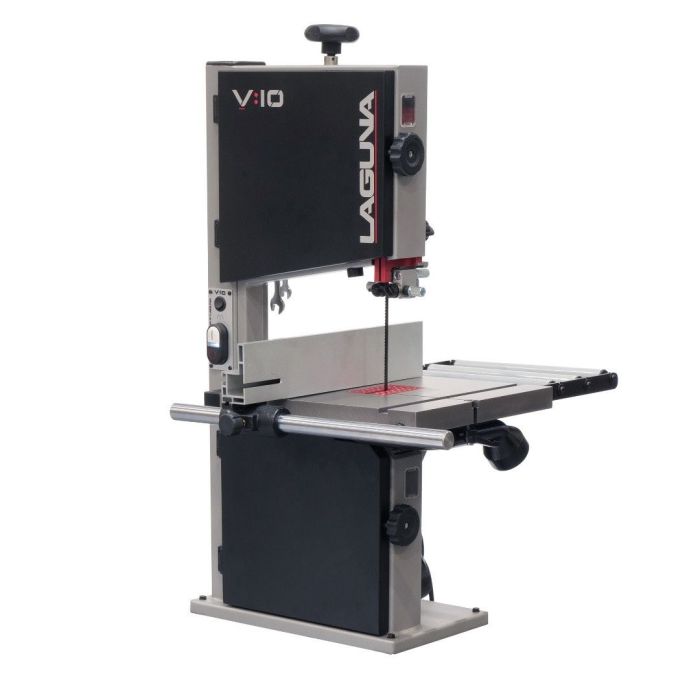

SCIE À RUBAN 10" 1CV 120V LAGUNA

Brand:
LAGUNA

Features:
The smallest bandsaw is loaded with innovative features normally found in larger machines. These features along with the superior performance of the V:10 make it the best value for the price in 10” bandsaws.

• Cast Iron Wheels
• 1 HP Induction Motor
• 5.75” Resaw Capacity
• Built-in LED light
• Quick-release Magnetic under-table Dust Chamber
• 120V Outlet for Optional light
• Dual 2 ½” Dust Ports
• Hi/Low Fence with Solid Steel Rail
• Quick-Release Magnetic Under-Table Dust Port
• Oversized Perforated Throat-Plate with Levelling Screws
• Roller Bearing Blade Guides with Tool-Less Micro-Adjustment
• Dual Blade Tracking Windows
• Quick-Release Blade Tension Lever
• Dual Blade Speeds: 1515 /3280 ft/min
• Rack and Pinion Upper Guide
• Large Blade Tensioning Knob
• Roller Outfeed Table (Optional Accessory)
• Stand with Adjustable Height (Optional Accessory)
• Caster Set (Optional Accessory)

Specifications:
Motor – 1 HP Induction Motor
Power – 120 Volt 60 Hz
Flywheel Size – 10” Diameter
Resaw Height – 5.75” (146.05 mm)
Throat – 9-5/8” (245 mm)
Blade Length – 70-1/2” (1791 mm)
Blade Width – 1/8” – Max 1/2” (3.18 – 12.7 mm)
Blade Speed – 1515 High / 3280 Low Ft/Min – (462 / 1000 m/min)
Table Size – 13-3/4” x 12-1/2” (350 x 318 mm) (+ 1.25” left extension)
Table Tilt – Left -5° / Right 45°
Table Height – 14-1/2” (368 mm) (without optional stand)
Dust Port Diameter – 2-1/2” x 2 (64mm)
Base Size – 9-1/4” x 15-3/4” (235 x 400 mm)
Overall Size – 22-1/2” x 21” x 34-1/2” (546 x 533 x 876 mm) LxWxH
Included: 3/8” Blade
Blade Material: Carbon Steel

Includes:
(1) 10" band saw
