FEIN CORDLESS MAGNETIC DRILL, TOOL ONLY - AJMU137PMQWAS

Brand:
FEIN

Features:
Small universal magnetic drilling unit 1 speed, high lifting stroke, with right/left rotation, CM2 tool holder, permanent magnet and maximum functionality for flexible work on site.

• Extremely wear-resistant and durable design thanks to the brushless motor and high quality of materials and workmanship. Designed to drill up to 60,000 boreholes with a 300-hour life.
• Small and lightweight machine with up to 25% higher working speed for unique productivity and battery life compared to the competition. With the AMPShare CORE 18 V 12 Ah battery, it is possible to make up to 48 holes per charge (carbide milling cutter, Ø 18 mm, S235 12 mm).
• With 12.2 kg, it is the lightest universal wireless coring unit in the world. Flexibility for all mobile drilling jobs, such as coring drilling, twist drill drilling, tapping, chamfering and boring, thanks to right/left rotation, electronic speed adjustment and 260 mm total lifting.
• Intuitive control keyboard in the operator’s field of view.
• Comfortable magnetic holding force display helps set up the machine safely.
• The tilting sensor stops the drilling motor in case of machine slippage or tipping.
• MK2 tool holder for direct use of industrial tools.
• Safe stability thanks to prismatic permanent magnet with pre-hold for comfortable and simple alignment.
• Memory Function for storing rotation speed.
• COOLPACK 2.0 technology extends battery life by 135% and allows for longer run times.

• Advanced cellular technology and intelligent battery management deliver 87% more power than conventional batteries.
• 18 V CORE Li-ion battery with high power cells, charge indicator and «Electronic Cell Protection» (ECP). ECP protects the battery from overcharging, overheating and deep discharge.
• optional with accessories.
• Maximum power with AMPShare Core 18V 8.0 Ah / 12.0 Ah

Technical data:
Battery voltage: 18 V
Battery compatibility: Lithium-ion/lithium-ion CORE**
Battery interface: 18 V AMPShare
Motor: Brushless
Charging speed: 130 - 520 min?¹
Tool holder: CM 2
Ø max. carbide cutter: 1-3/8 [35] in[mm]
Ø max. of HSS cutter: 1-3/8 [35] in[mm]
Max. drill depth of cutter: 2 [50] (3 [75] )* in[mm]
Twist drill bit max. Ø: 3/4 [18] in[mm]
Tapping: 1/2"
Ø max. for chamfering: 1-1/4 [31] in[mm]
Max. bore diameter: 3/4 [18] in[mm]
Socket: 3/4 in Weldon
Milling cutter change: without tool
Stroke: 5-5/16 [135] in[mm]
Total lifting stroke: 10-1/4 [260] in[mm]
Magnetic force: 2023 [9,000] lbs[N]
Magnetic foot dimensions: 7-11/16 [195] x 2-3/4 [70] in[mm]
Weight without battery: 26.90 [12.20] lbs[kg]

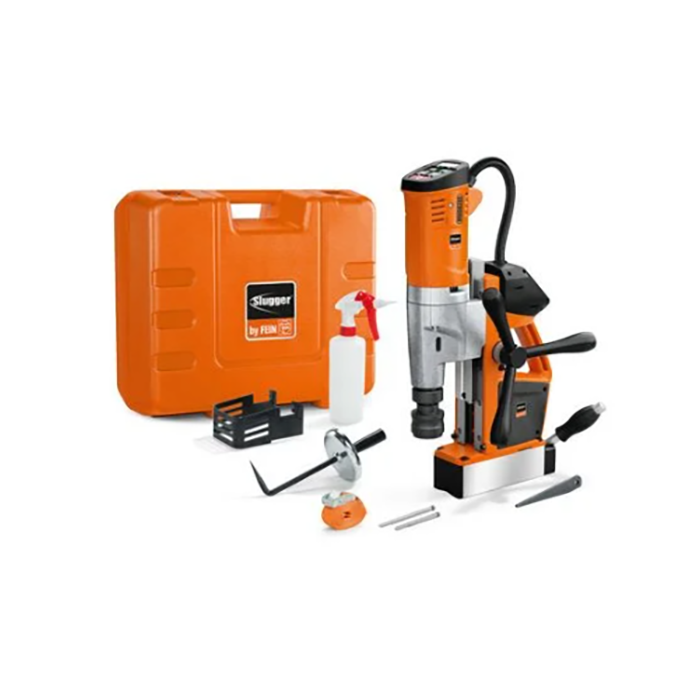

Includes:
(1) Wireless magnetic coring drilling unit
(1) Cooling pump
(1) Ejector Ø 1/4 x 3-1/8 [6.35 x 80] in[mm]
(1) Ejector Ø 1/4 x 3-1/4 [6.35 x 82] in[mm]
(1) Ejector Ø 1/4 x 4 [6.35 x 100] in[mm]
(1) Safety Strap
(1) Chip hook
(1) Chip protection grid
(1) Cone chaser
(1) Box
