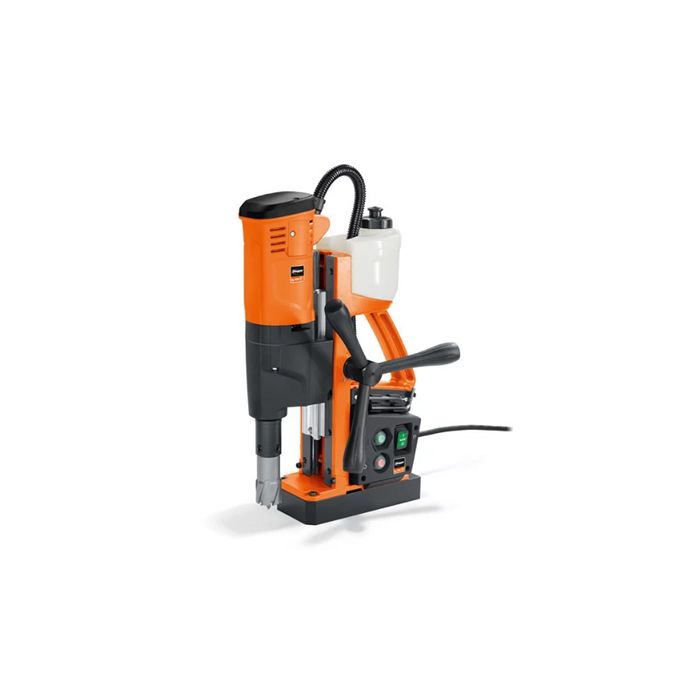

JHM HOLEMAKER III MAGNETIC DRILL - JMEHMIII

Brand:
FEIN
Features:
Extemely wear resistant concept with durable newly designed polyurethane motorhousing for use in industry and manual trades.Extemely lightweight drill yet powerful enough for heaviest drilling applications.Cost effective drill for use with Carbide cutters which offer longer life, higher cutting rate and capable of cutting harder materials. Also running with standard HSS cutters with great results.Optimum power-to-weight ratio.
Integrated coolant tank.Drill motor does not start for material thicknesses less than 3/16 [4] in[mm] if the magnetic holding force is too low.Pivoting motor cable.Higher RPM for optimal use with carbide cutters.Hand feed wheel can be mounted either side.Integrated hexagon socket holder.
Specifications:
Power consumption: 1,100 W
Power output: 510 W
Full load speed: 450 rpm
No load speed: 590 rpm
Carbide cutter max. dia.: 1-3/8 [35] in[mm]
HSS cutter max. dia.: 1-3/8 [35] in[mm]
Cutter max. drilling depth: 2 [50] in[mm]
Twist drill max. dia.: 5/8 [16] in[mm]
Cutter holder: 3/4" Weldon
Stroke: 5-11/16 [145] in[mm]
Total stroke range: 10-1/4 [260] in[mm]
Magnetic holding force: 2810 [12,500] lbs[N]
Magnetic base dimensions: 7-11/16 [195] x 3-9/16 [90] in[mm]
Cable with plug: 8.9 [2.7] ft[m]
Weight: 25.79 [11.70] lbs[kg]
