DOMINO JOINTER DF500RQ SET - 578544

Brand:
FESTOOL

Features:
The newly updated DF 500 R features built-in retractable stop pins for repeatable tenon placement at different spacings, along with an upgraded guide frame and column guide for increased stability.

Bring every type of wood joint together with the Festool Domino Joiner DF 500 RQ-Set. Its unique pendulum routing action creates precise, twist-proof elongated holes, while Domino dowels combine the strength of mortise and tenon joints with the flexibility of dowels. The result is a versatile system suitable for both delicate and heavy-duty projects, indoors and outdoors.

The pendulum cutting motion ensures smooth operation and consistent accuracy. Combined rotation and pendulum movement reduce overheating, extending cutter life. Built-in stop pins simplify repeatable positioning without the need for measuring. The improved guide frame and column guide enhance stability, while positioning pins ensure perfect alignment.

Each cut is designed for maximum holding strength. The oval shape of the Domino dowels, along with glue pockets and side grooves, ensures a strong, twist-resistant joint. Dowels are available in sizes from 4 x 20 mm to 10 x 50 mm, with preset routing depths of 12, 15, 20, 25, or 28 mm. Adjustable routing angles from 0 to 90° allow for precise mitre joints.

The Domino system goes beyond fixed joints. Connectors and fittings enable strong assemblies that can be disassembled when needed. Integrated reference pins allow for fast positioning, and adjustable mortise width ensures proper alignment even with minor variations. Domino dowels are available in different wood types for indoor and outdoor use.

Festool’s integrated system features—including CLEANTEC bayonet fitting, antistatic function, FastFix tool change system, and Plug It detachable cord—make the DF 500 efficient and easy to use. When paired with a Festool dust extractor, chip removal is highly effective for cleaner work and precise results.

Ideal for panel joints, mitres, frames, thin materials, and rounded profiles, the DF 500 delivers fast, reliable, and rotation-proof joints.

Specifications:
Power Consumption: 420 W
No-Load Speed: 25,500 RPM
Routing Depth Stops: 12, 15, 20, 25, 28 mm
Maximum Routing Depth: 28 mm
DOMINO Cutter Diameter: 4, 5, 6, 8, 10 mm
Routing Height Adjustment: 5 – 30 mm
Mitre Routing Angle: 0 – 90°
Dust Extraction Connection Diameter: 27 mm
Cable Length: 4 m
Weight Without Accessories: 3.60 kg
Transport Weight Including Accessories: 6.50 kg

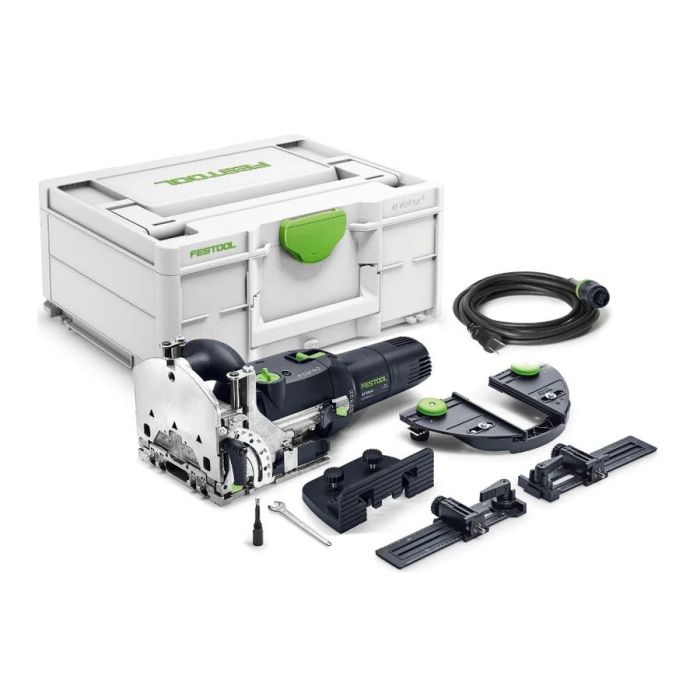

Includes:
(1) Festool DF 500 Domino Joiner
(1) D 5-NL 20 HW-DF 500 Cutter
(1) ZA-DF 500/700 Additional Stop
(1) LA-DF 500/700 Trim Stop
(1) QA-DF 500/700 Cross Stop
(1) WAF 8 Open-End Spanner
(1) Plug It Cord
(1) Systainer SYS3 M 187
