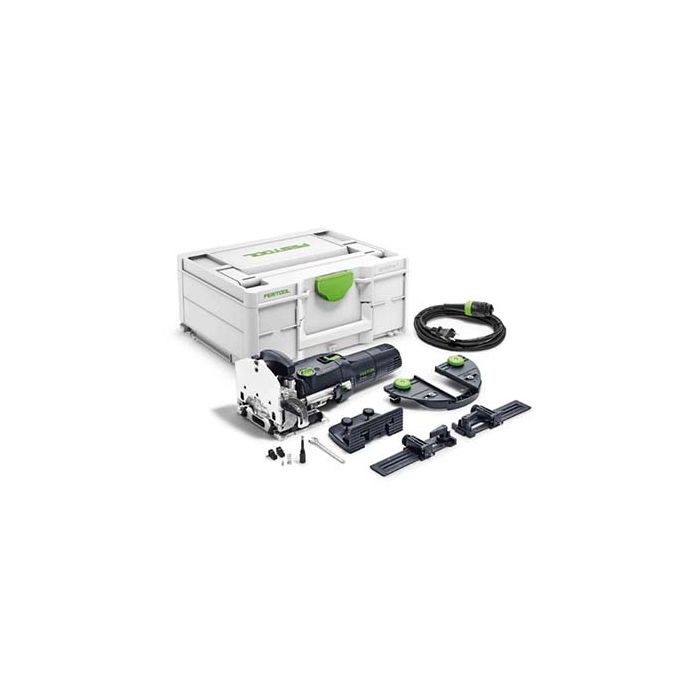

DOMINO JOINTER DF500Q SET - 576423

Brand:
FESTOOL

Features:
Domino Joiner DF 500 Q Set (including trim stop and cross stop) for fast, easy and strong mortise and tenon joining.
Unique, patented cutting action that rotates and oscillates to create perfect, clean, and repeatable mortises every time.
Mortise width adjustment with the turn of a dial allows for easier alignment when joining panels.
Pivoting Fence allows you to create angled mortises from 0-90° with positive stops at 22.5°, 45°, 67.5°.
Indexing pins for quick alignment against the edge of the workpiece for accurate placement.
The spiral cutter rotates and oscillates to create perfect mortises.
With an adjustable fence angle, retractable stop flaps, adjustable cutter height with step gauge, and precise mortise depth stop, the Domino joiner enables precise mortise placement and spacing.
Quick, precise adjustment for five different mortising depths, relative to the size of the tenon required for the application.
7 different step positions for different material thicknesses for fast and easy fence height adjustment.

Specifications:
Cutter spindle speed: 24,300 rpm
DOMINO slot cutter diameter: (5/6/8/10 mm)
Miter routing: 0-90°; stop positions at 0°, 22.5°, 45°, 67.5°, 90°
Movable stepped stop: (16/20/22/25/28/36/40 mm)
Power consumption: 420 watts
Routing depth stop: (12/15/20/25/28 mm)
Routing height adjuster with scale: (5-30 mm)
Weight: 7 lbs. (3.2 kg)

Includes:
(1) DOMINO Jointer DF500Q
(1) Trim stop and cross stop
