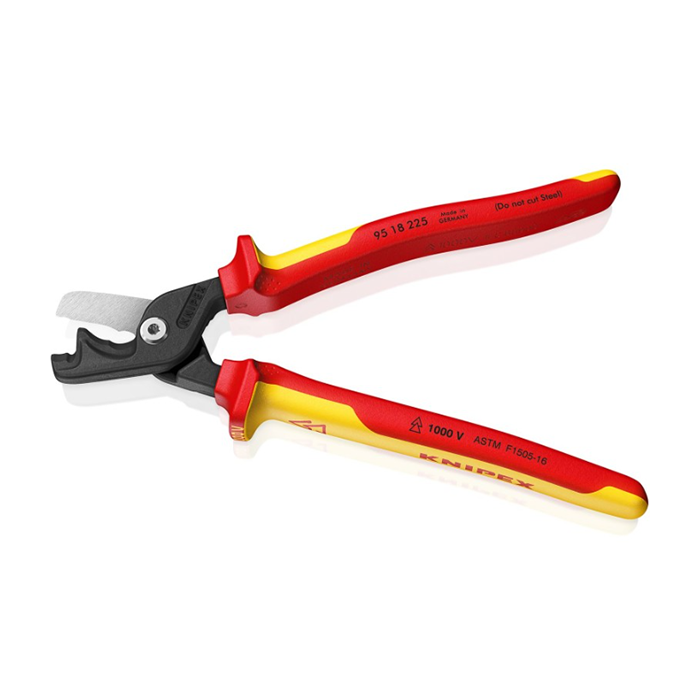

KNIPEX StepCut® XL CABLE SHEAR INSULATED - 9518225SBA

Brand:
KNIPEX

Features:
• High leverage articulation, long handles and optimized cutting edges for easier cutting than compact cable shears
• Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine strand cables up to 4/0 AWG
• Two cutting areas: stepped cutting edges position cables close to the joint and the front cutting edge is used for progressive cutting (“nibbling”) of larger cables.
• Easy one- or two-handed operation with minimal handle opening for large cable diameters
• Thin head for better accessibility
• Not suitable for steel reinforced cables such as ACSR
• High leverage adjustable bolt joint for precise and smooth cutting.
• Pinch protection prevents operator fingers from being pinched
• Laser dipped cutting edges (approx. 56 HRC)
• 1000 V multi-component handles, tested ASTM F1505
• High quality special tool steel; forged; oil hardened

Specifications:
Length: 9"
Width: 2 1/2"
Height: 1 1/8"
Weight: 0.944 pounds
1000 isolated volts: Yes
ESD indicator: No
Spring: No
Material Type: High quality special tool steel, forged, oil hardened
Handle type: 1000V insulated
Surface finish: Bruni
Type of joint: Bolted
Cutting capacity - Cu and Al conductor: 29/32"
Tip shape: Mowing
Jaw length: 1 1/4"
Jaw width: 1 1/4"
Jaw thickness: 1/2"
Tip thickness: 1/4"
Tip width: 1"
