COMPRESSEUR À GAZ 9 CV 20.1 CFM

Brand:
ROLAIR

Features:

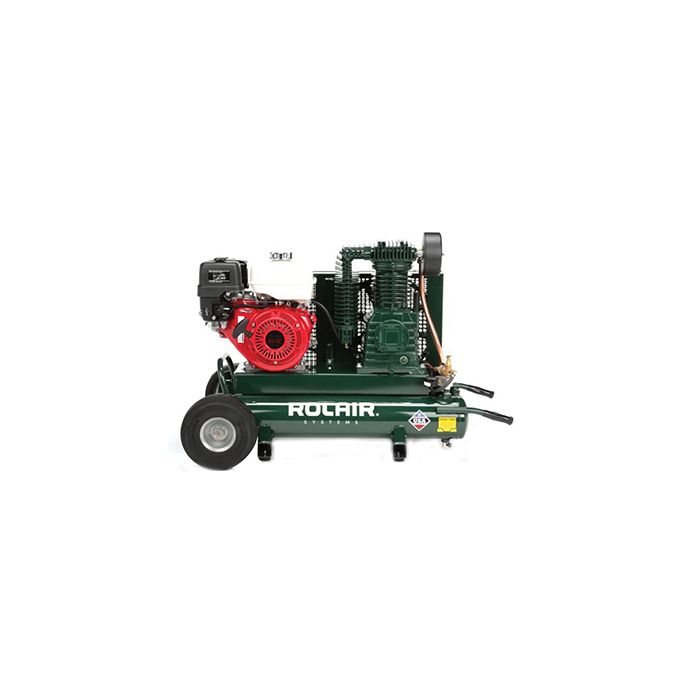

The 8422HK30 model is the largest portable two-stage air compressor available on the market, delivering 20.1 CFM at 90 psi. It is equipped with the popular 270 cc Honda engine (GX270) with automatic idle for increased fuel efficiency and an atmospheric dump system to reduce oil consumption.
Optional equipment: filter-regulator-lubricator kits, electric start.

• Pressure gauge 0–300 psi, 5 lb graduations
• Automatic pilot valve operation
• Industrial flexible discharge hose
• Automatic idle control for efficiency and long life
• Inlet filter with silencer and replaceable element
• Schmidt belt tensioning device
• Air-cooled final cooler
• Fully enclosed steel belt guard
• Safety valve

Pump:
• Two-stage
• Twin cast iron cylinders
• Ball bearings
• Splash lubrication
• Cast iron valve plates with Swedish reed valves
• Aluminum alloy connecting rods with automotive-style inserts
• Multi-fin flywheel 15.16"
• Oil level gauge

Engine:
• Honda 4-stroke 270 cc (9 HP)
• Full die-cast aluminum block with cast iron sleeve
• Overhead valves
• Retractable starter
• On/off switch
• Splash lubrication
• Automatic shutoff at low oil level

Specifications:
• Horsepower: 270 cc (9 HP)
• Displaced CFM: 24.4 CFM
• Delivered CFM: 20.1 CFM at 90 psi
• Overload protection: No
• Lubrication type: Splash lubrication
• Pump oil capacity: 47 oz
• Valve system: Yes (standard)
• Number of cylinders: 2
• Tank capacity: 9 gallons
• Dimensions (L x W x H): 46" x 28" x 35"
