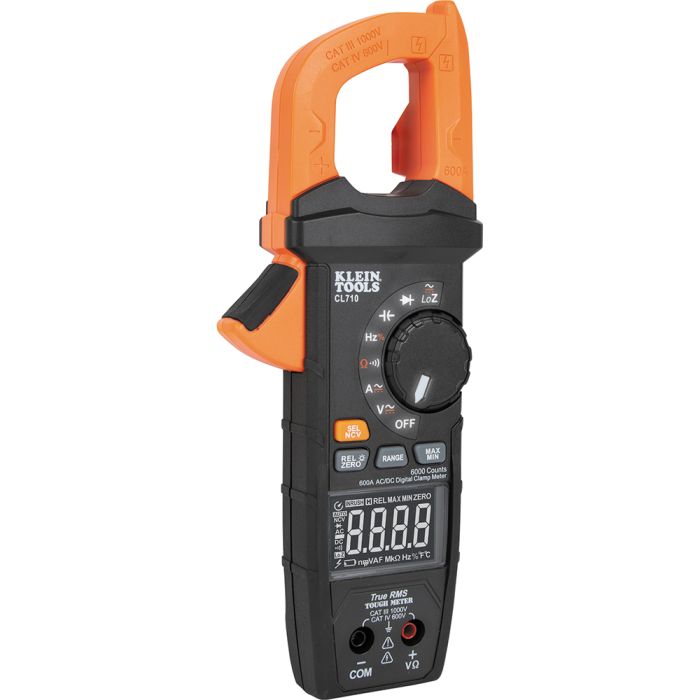

600A AC/DC DIGITAL PRO CLAMPING METER - CL710

Brand:
KLEIN

Features:
• Clamp meter with True RMS provides accurate and reliable measurements across various applications
• Measures AC/DC voltage, AC/DC current, resistance, diode test, continuity, capacitance, and frequency/duty cycle
• Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
• Illuminated dial ensures clear visibility and easy reading, even in low-light environments
• Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
• Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
• Durable Clamp Meter is rated IP40 for ingress protection and withstands drops up to 6.6 feet (2 m)
• Includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
• Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb
• Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation.

Specifications:
Specifications:
Type: Pro Clamp Meter
Application: Variety of electrical diagnostic and troubleshooting applications
Special Features: Transflective reverse-contrast display; lighted dial; built-in lead holder
Material: ABS/Electronics
Batteries: 3 x AAA
Auto-Power Off: Yes
Jaw Size: 1.4" (3.6 cm)
Drop Protection: 6.6' (2 m)
Display: Transflective reverse-contrast with 6000 count LCD
Display Size: 1.5" x 1.0" (3.83 x 2.6 cm)
Functions: AC/DC voltage, AC/DC current, resistance, audible continuity, low impedance, non-contact voltage testing, diode test, capacitance, frequency/duty cycle, min/max value, rel/zero, data hold capability
Auto Ranging: Yes
TRMS: Yes
Voltage: 1000V AC; 1000V DC
Frequency: 1Hz - 500KHz
Current: 600A
Capacitance: 6000µF
Ohms (Resistance): 60M?
AC Voltage: 1000V
DC Voltage: 1000V
DC Polarity Indicator: Yes
DC Micro-Amp: No
Temperature Range: –
Ingress Protection: IP40
Accuracy: See instructions
Standard: CAT IV 600V, CAT III 1000V, Class 2, double insulation, CE, UKCA
Included: Clamp meter; right-angle input test leads; storage pouch; instruction manual; and 3 x AAA batteries
Overall Length: 9.06" (23.0 cm)
Overall Height: 1.65" (4.2 cm)
Overall Width: 3.47" (8.8 cm)
Weight: 13 oz (369 g) including batteries
UPC: 092644694493
