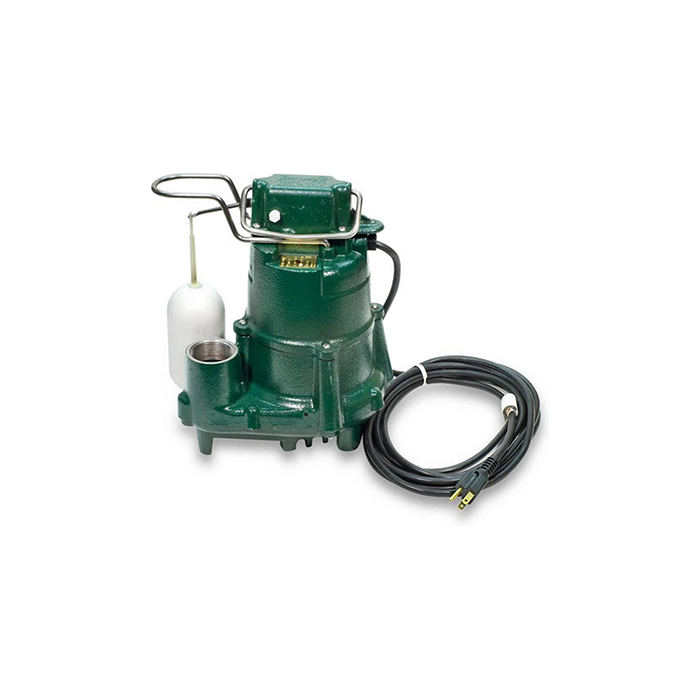

1/2 HP WASTEWATER PUMP - M98

Brand:
ZOELLER
Features:

Corrosion-resistant, powder coated epoxy finish
Durable, cast iron construction
Cast iron switch case, motor and pump housing
Engineered thermoplastic base
No sheet metal parts to rust or corrode
All castings are cast iron class 25-30 25000# tensile strength
Stainless steel screws, guard, handle, arm and seal assembly
Float-operated 2-pole mechanical switch
Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermal overload protection
Bearings – upper and lower oil-fed cast iron
Carbon and ceramic shaft seal
Entire unit pressure-tested after assembly
Watertight, neoprene square ring between motor and pump housing
Maximum temperature for effluent or dewatering: 130 °F (54 °C)
Passes 1/2” (13 mm) spherical solids
No screens to clog
1-1/2” NPT discharge (1-1/2” x 2” PVC adapter included with BN and BE Models)
On point: 9-1/2” (24 cm)
Off point: 3” (8 cm)
Major width: 10-1/8" (25.7 cm)
Major height: 12" (30 cm)
Simplex and duplex systems available
Packaged systems available
Automatic and non-automatic available
Available with piggyback variable level float switch
3 year limited warranty
Consult Factory for Special Applications

Electrical alternators for duplex systems are available and supplied with an alarm
Mechanical alternators for duplex systems are available with or without alarm switches
Variable level float switches are available for controlling single and three phase systems
Double piggyback, variable level float switches are available for variable level long cycle controls
Refer to FM1922 and FM0806 for temperatures above 130 °F (54 °C)
Specifications:
Motor: 1/2 HP
Voltage: 115 or 230 V
Phase: 1 Ph
Hertz: 60 Hz
RPM: 1725 RPM
Type: Permanent split capacitor
Insulation: Class B
Amps: 4.7 – 9.4 Amps
Operation: Automatic or nonautomatic
Auto On / Off Points: 9-1/2" / 3" (24 cm / 8 cm)
Discharge Size: 1-1/2" NPT
Solids Handling: 1/2" (12 mm) spherical solids
Cord Length: 15' (5 m) standard
Cord Type: UL listed
Max Head: 23' (7 m)
Max Flow Rate: 72 GPM (273 LPM)
Max Operating Temperature: 130 °F (54 °C)
Cooling: Oil filled
Motor Protection: Auto reset thermal overload
Cap: Cast iron
Motor Housing: Cast iron
Pump Housing: Cast iron
Base: Engineered Thermoplastic
Upper Bearing: Oil-fed cast iron
Lower Bearing: Oil-fed cast iron
Mechanical Seals: Carbon and ceramic
Impeller Type: Non-clogging vortex
Impeller: Engineered plastic
Hardware: Stainless steel
Motor Shaft: AISI 1215 cold roll steel
Gasket: Neoprene
