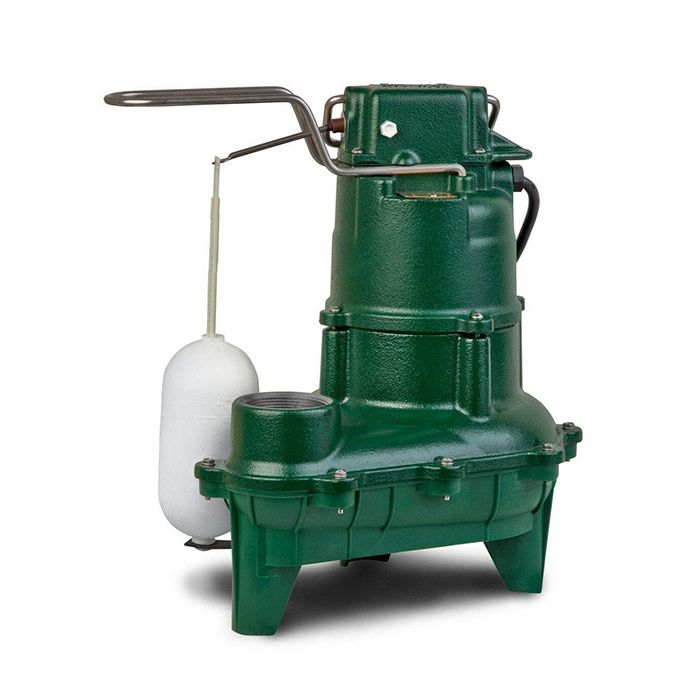

4/10 HP WASTEWATER PUMP - M264

Brand
ZOELLER
Features:

Zoeller Pump Company Model 264 Wastewater Pump is a high performance product. Featuring a cast iron construction for durability, the design includes stainless steel bolts and screws on the guard, handle, arm and seal. The powder-coated epoxy finish offers impressive corrosion resistance.

This fully submersible float pump works for wastewater, effluent and dewatering. An innovative vortex impeller uses centrifugal force to push the fluid against the volute of the pump. With this method, the turbine blades avoid contact with the liquid, which helps prevent blockages. This model offers a discharge size of 2 inches and allows 2 inch spherical solids to pass effortlessly.

The models we offer can be equipped with a variable level stacked float switch. This practical function can successfully turn a non-automatic pump into an automatic pump. The switch design includes an internal sensor to detect the water level. Once the water reaches a certain threshold, it triggers a switch and activates the pump.



• Float switch, submersible (NEMA 6), bipolar switch
• Durable cast iron construction - switch cap, motor and pump housing
• Technical plastic base
• Stainless steel screws, bolts, handle, guard, arm and seal
• Corrosion resistant powder coated epoxy finish
• Hermetically sealed, auto reset thermal overload protection
• Upper and lower sleeve bearings operating in an oil bath
• Carbon and ceramic shaft seal
• Passes 2 (50 mm) spherical solids
• 2" NPT discharge
• Tip: 12-1/2" (31.8 cm)
• Neutral: 4-1/2" (11.4 cm)
• Simplex and duplex systems available
• Automatic and non-automatic models available
• Non-automatic for variable level systems
available packaged with a • variable level float switch
• 3 year limited warranty

Refer to factory for special applications:

• Duplex electric alternators available with variable level float switches.
• Minimum recommended size of pelvis – Simplex: 18” x 30” (45.7 x 76.2 cm), Duplex: 30” x 36” (76.2 x 91.4 cm)
• Standard Automatic – 4/10 HP, 34.5 lbs (15.6 kg)
• High water level alarms available
• Mechanical alternators available for duplex systems

Tank diameter - Gallons/ Liters pumped

Simplex 18" (46 cm) - 8 gallons/ 36 liters
Simplex 24" (60 cm) - 15 gallons/ 68 liters
30" (76 cm) duplex - 22 gallons / 100 litres
36" (91 cm) duplex - 33 gallons / 150 litres
48" (122 cm) double-sided - 60 gallons/ 273 liters
