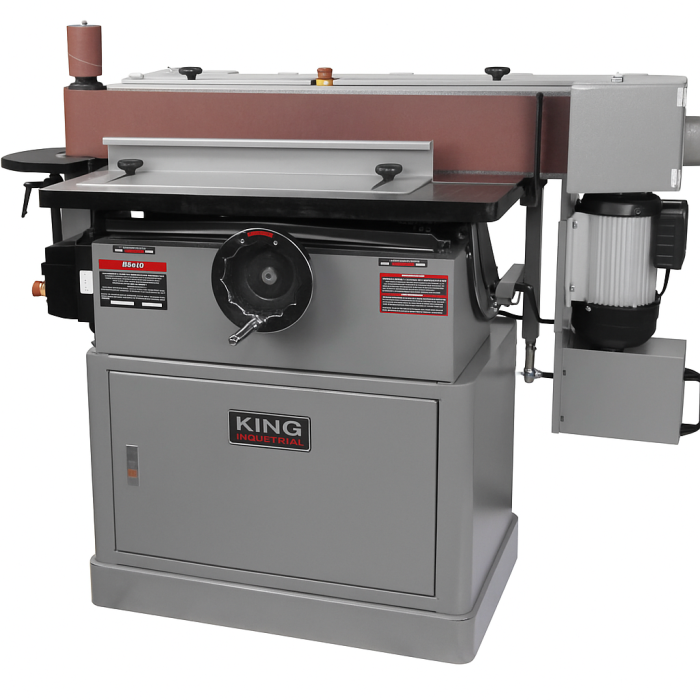

6” X 108” OSC. EDGE & SPINDLE SANDER - KC-6108-OSCM

Brand:
KING CANADA

Features:
• Powerful 2 HP motor
• Precision ground cast iron tables
• Ocillating sanding belt tilts from 0º - 90º instead of the table
• Features a non-oscillating spindle sander for contour
sanding
• Balanced 7” aluminum drive wheel and 4” idler
rubber wheel ensure positive grip
• Quick release sanding belt tension lever
• Graphite pad diminishes belt friction for increased
sanding belt life
• Two 4” dust chutes mounted on hinged safety guards
provide optimal dust collection
• Magnetic safety switch and top mounted emergency
stop button
• Includes miter gauge, work stop, three end-table
inserts and three 4-1/2” high spindle drums and
sanding sleeves (1-1/2”, 2”, 3”)

Specifications:
Belt: 6” x 108”
Table size (front): 35-5/8” x 12”
Table size (end table): 10” x 11-1/2”
Belt speed: 3,150 SFPM/pi./min
Belt oscillation stroke: 3/4"
Table travel (upward / forward/back): 4” / 4-1/2”
Motor: 9.4 Amp.
Voltage: 220V, 1 phase, 60 Hz
Assembled dimensions (LxWxH)/weight: 60” x 28” x 49-1/2” / 485 lbs
Package dimensions (LxWxH)/weight: 58” x 32” x 44-1/2” / 550 lbs
