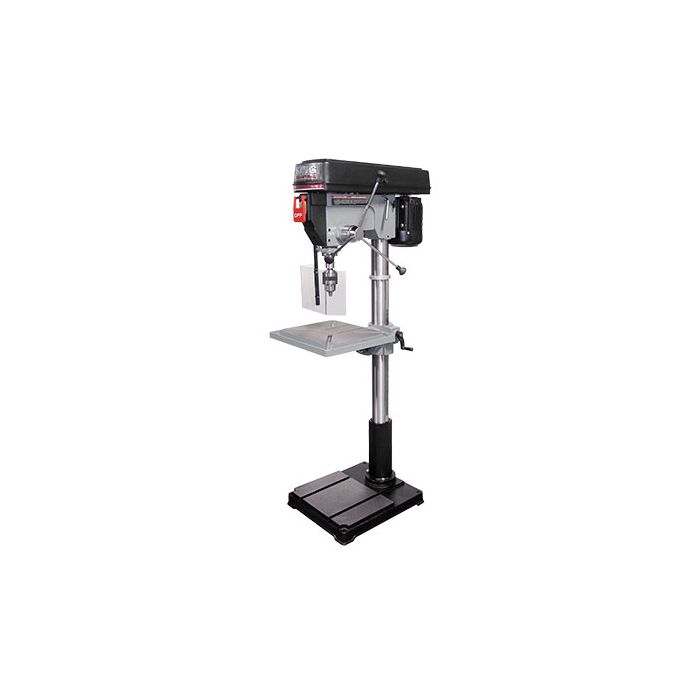

22" DRILL PRESSES WITH SAFETY GUARD - KC-122FC-LS

Brand:
KING INDUSTRIEL
Features:
Powerful 1 HP motor.
Drill press with limit switch protection.
Line interruption electro-mechanical switch needs a restart after a power failure.
Spindle is supported by high quality ball bearings.
Cast-iron pulleys reduce vibrations.
45° tilting table for angular drilling.
Non-slip rubber feed handles.
12 speeds.
Line interruption electromechanical switch and safety guard with limit switch protection.
Light socket incorporated into drill press head (standard light bulb not included).
Specifications:
Capacity: 1-1/4 in.
Chuck size: 3/4 in.
Swing: 22 in.
Stroke: 4-3/4 in.
Max. distance chuck to table: 21-3/4 in.
Max. distance chuck to base: 41-7/8 in.
Table size: 18-3/4 in. x 16-1/4 in.
Table T-slot size: 5/8 in.
Spindle taper: MT#4
Quill diameter: 75 mm
Speeds: 12 (180-4200 RPM)
Motor: 12.5 Amp.@ 110V, 6.25 Amp.@ 220V
Voltage: 110/220V, 1 phase, 60Hz
Pre-wired at: 110V
Dimensions (LxWxH): 18-3/4 in. x 33 in. x 69 in.
Weight : 320 lbs
