17" DRILL PRESSES WITH SAFETY GUARD

Brand:
KING INDUSTRIAL

Features:

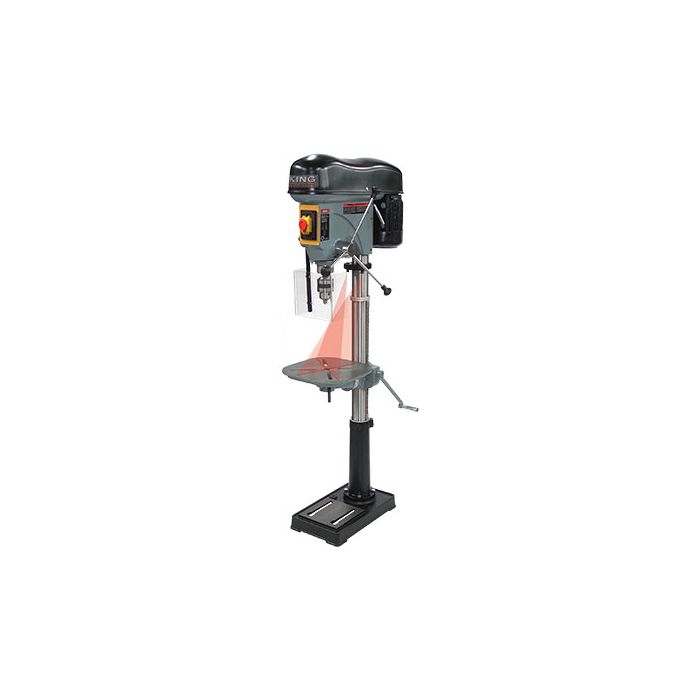

The KING INDUSTRIAL KC-119FC-LS 17 in. class floor drill press is designed for drilling tasks requiring extended spindle travel. Its 6 in. stroke, 3/4 in. chuck and 12 speeds allow drilling to be adapted to the workpiece and drill bit. It includes dual laser guides and a chuck guard with limit switch protection.

• 1 HP TEFC motor with a totally enclosed, fan-cooled design.
• Extended 6 in. spindle travel for deep drilling.
• Guard prevents starting when open and automatically shuts off the machine if opened during operation.
• Electromechanical switch requires restarting after a power failure.
• Adjustable intersecting laser guides indicate the drilling point; two AAA batteries required, not included.
• Twelve speeds selected by repositioning the belts on the pulleys.
• Cast-iron pulleys help reduce vibration.
• Crank-operated table height adjustment and up to 45° table tilt.
• Rack pivot collar allows the table to swing out of the way without catching or twisting the rack.
• Depth stop with graduated scale for setting drilling depth.

Specifications:
Model: KC-119FC-LS
UPC: 772995014255
Type: long-stroke floor drill press
Motor power: 1 HP
Motor construction: TEFC
Advertised drilling capacity: 3/4 in.
Chuck capacity: 3/4 in.
Swing: 16-15/16 in.
Maximum chuck-to-column distance: 8-7/16 in.
Maximum chuck-to-table distance: 23-3/4 in.
Spindle travel: 6 in.
Table dimensions: 14 × 14 in.
Table tilt: up to 45°
Spindle taper: No. 3 Morse
Quill diameter: 75 mm
Number of speeds: 12
Speed range: 255–2,750 RPM
Voltage: 110/220 V
Factory wiring: 110 V
Amperage at 110 V: 12.5 A
Amperage at 220 V: 6.25 A
Power supply: single-phase, 60 Hz
Laser power supply: two AAA batteries, not included
Assembled dimensions (L × W × H): 14 × 29 × 67-1/4 in.
Assembled weight: 230 lb

Includes:
(1) KING INDUSTRIAL KC-119FC-LS floor drill press
(1) Chuck safety guard with limit switch
(1) Adjustable dual laser guide assembly
(4) Mounting brackets for the laser assembly
(1) 3/4 in. keyed chuck
(1) Spring-loaded chuck key
(1) Chuck arbor
(1) Knock-out wedge
(1) Set of adjustment hex keys
