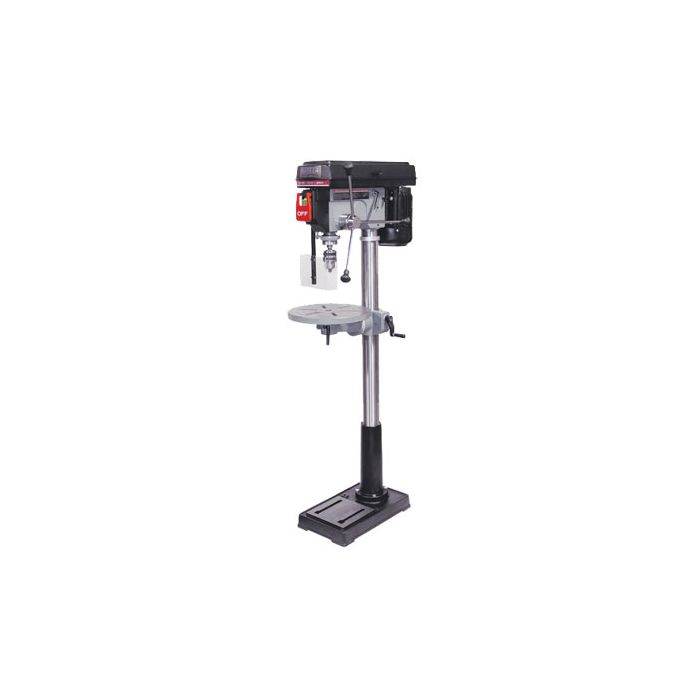

17" DRILL PRESSE WITH SAFETY GUARD

Brand:
KING INDUSTRIAL

Features:
The KING INDUSTRIAL KC-118FC-LS 17 in. floor drill press is designed for workshop drilling tasks. Its 1 HP motor and 16 speeds allow the rotational speed to be matched to the drill bit and workpiece material. This version includes a safety guard with a limit switch and protection against automatic restarting after a power failure.

• Transparent safety guard with a limit switch prevents starting while the guard is open and stops the machine if the guard is opened during operation.
• Electromechanical switch requires deliberate restarting after a power interruption.
• Choice of 16 speeds, from 240 to 3,400 RPM, selected by repositioning the belts on the pulleys.
• Cast-iron pulleys help reduce vibration.
• Spindle supported by ball bearings.
• 5/8 in. keyed chuck and Morse No. 2 spindle taper.
• Table tilts up to 45° for angled drilling.
• Table height adjusts using a crank and rack mechanism.
• Depth adjustment allows drilling to a set depth.
• Feed handles feature non-slip rubber grips.
• Light socket integrated into the head; bulb sold separately.
• Dual-voltage motor comes prewired for 110 V. Conversion to 220 V requires wiring changes and replacement of the plug and main switch by a qualified technician.

Specifications:
Model: KC-118FC-LS
Type: floor drill press with limit-switch-protected safety guard
Swing: 17 in.
Motor power: 1 HP
Power supply: 110/220 V, single-phase, 60 Hz
Factory prewiring: 110 V
Current at 110 V: 12.5 A
Current at 220 V: 6.25 A
Chuck capacity: 5/8 in.
Spindle travel: 3-1/4 in.
Spindle taper: Morse No. 2
Quill diameter: 65 mm
Number of speeds: 16
Spindle speed range: 240–3,400 RPM
Table size: 13-3/4 in.
Maximum table tilt: 45°
Maximum chuck-to-table distance: 23-3/4 in.
Maximum chuck-to-base distance: 44 in.
Assembled dimensions (L × W × H): 13-3/4 in. × 25 in. × 64 in.
Assembled weight: 185 lb

Includes:
(1) 17 in. floor drill press — KC-118FC-LS
(1) 5/8 in. keyed chuck
(1) Chuck arbor
(1) Chuck key
(1) Transparent safety guard assembly with limit switch
