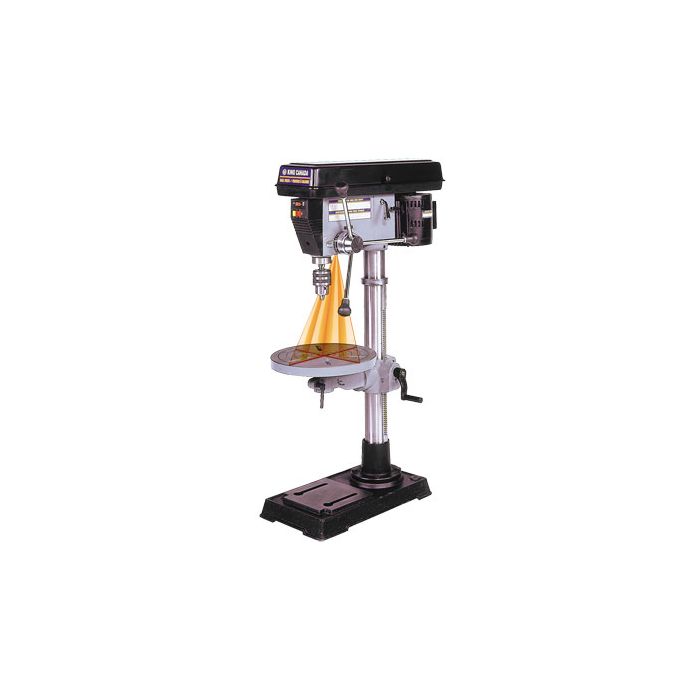

13" BENCH DRILL PRESS

Brand:
KING CANADA

Features:
The KING CANADA KC-116N 13 in. bench drill press is designed for workshop drilling tasks. Its 7.5 A motor and 16 speeds allow the rotational speed to be matched to the drill bit and workpiece material. Two adjustable laser guides help position the drilling point, while integrated halogen lighting improves workpiece visibility.

• Two adjustable intersecting laser guides help align the drill bit with the drilling point.
• Choice of 16 spindle speeds, ranging from 220 to 3,600 RPM.
• 5/8 in. keyed chuck accepts drill bits with shanks up to 5/8 in.
• Heavy-duty cast-iron table and base support the workpiece and machine.
• Table tilts to 45° for angled drilling.
• Adjustable depth stop allows repeated drilling to a set depth.
• Spindle supported by ball bearings.
• 3-1/8 in. spindle travel advances the drill bit into the workpiece.
• Halogen light integrated into the head, with bulb included.
• Chuck key holder keeps the key within reach.
• Benchtop configuration with an assembled height of 42 in.

Specifications:
Model: KC-116N
Type: bench drill press with dual laser guides
Swing: 13 in.
Chuck capacity: 5/8 in.
Spindle travel: 3-1/8 in.
Number of speeds: 16
Spindle speed range: 220–3,600 RPM
Spindle taper: Morse No. 2
Quill diameter: 55 mm
Table size: 11-3/4 in.
Table tilt: 45°
Maximum chuck-to-table distance: 13-1/2 in.
Maximum chuck-to-base distance: 24 in.
Power supply: 120 V, single-phase, 60 Hz
Motor current: 7.5 A
Lighting: integrated halogen
Alignment system: two adjustable intersecting laser guides
Assembled dimensions (L × W × H): 11-3/4 in. × 24 in. × 42 in.
Assembled weight: 114 lb

Includes:
(1) 13 in. bench drill press — KC-116N
(1) 5/8 in. keyed chuck
(1) Chuck key
(1) Chuck key holder
(1) Halogen bulb
