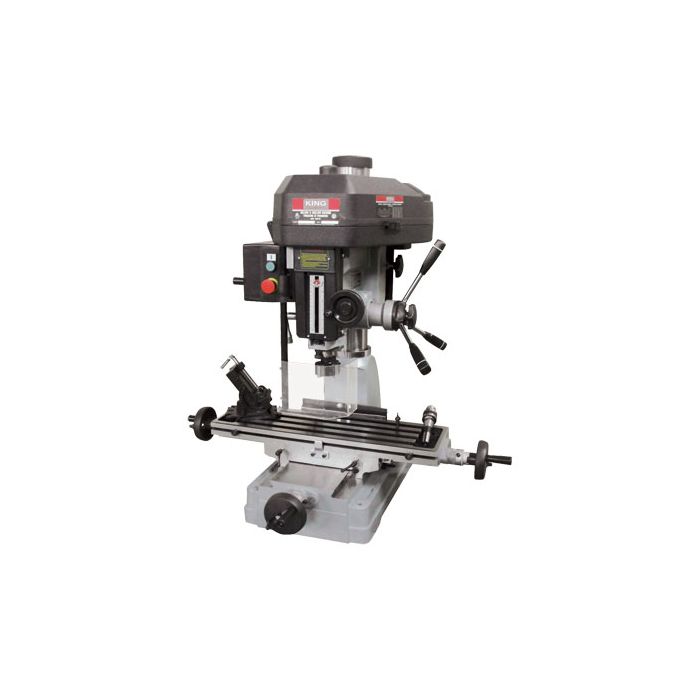

MILLING DRILLING MACHINE, R8, 2HP - PDM-30

Brand:
KING INDUSTRIEL
Features:
Safety guard with limit switch protection.
Magnetic line interruption switch needs a restart after a power failure.
Pulley cover with limit switch protection.
Spindle is equipped with four heavy-duty tapered roller bearings.
Table control hand wheels have large micrometer dials graduated in .001 in.
Head swivels 360° and is easily raised and lowered.
Comes with 3 in. face cutter, 1/2 in. chuck with key, 3-1/2 in. angle vise and safety guard
Specifications:
Drilling capacity : 1-1/4 in.
Max. distance spindle nose to table : 18-7/8 in.
Swing : 16-1/2 in.
Spindle taper : R8
Spindle Stroke : 5 in.
Diameter of Column : 4-3/4 in.
Speeds : 12 (150-2500) RPM
Face mill capacity : 3 in.
End mill capacity : 3/4 in.
Max. longitudinal travel: 17 in.
Working area of table : 8-1/4 in. x 28-3/4 in.
Size of T-Slot on table : 5/8 in.
Motor : 11 amp. @ 220V
Voltage : 220V, 1 phase, 60 Hz
Dimensions (LxWxH) : 47 in. x 34 in. x 55 in.
Assembled weight: 700 lbs
Shipping weight: 772 lbs
Option:
Support for milling drilling machine: Model SS-45
