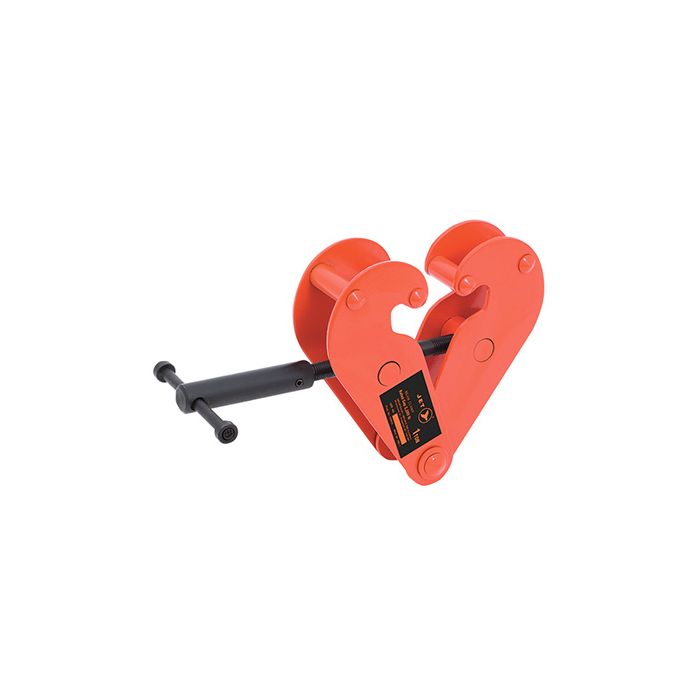

GRAPPIN À POUTRE 3 TONNES POUR I-BEAM

Brand:
JET
Features:
Robust, all steel construction
Can be adjusted to fit securely on a wide range of flange and beam widths
Meets ANSI B30.11 specifications (certificate included)
Tested to 125% of rated capacity
Built in suspension bar provides ultra-low headroom
Extension kits available for use on larger beam widths.
Specifications:
Capacity (Tons) 3
Rated Capacity (lbs) 6,600
Rated Flange Width 3-5/32" to 12-39/64"
Maximum A 13-15/16"
Minimum B 9-1/4"
Maximum B 19-19/64"
C 4-1/16"
D 5/16"
E 10-1/4"
Maximum F 5-1/2"
Minimum F 8-55/64"
G 1-49/64"
H 61/64"
