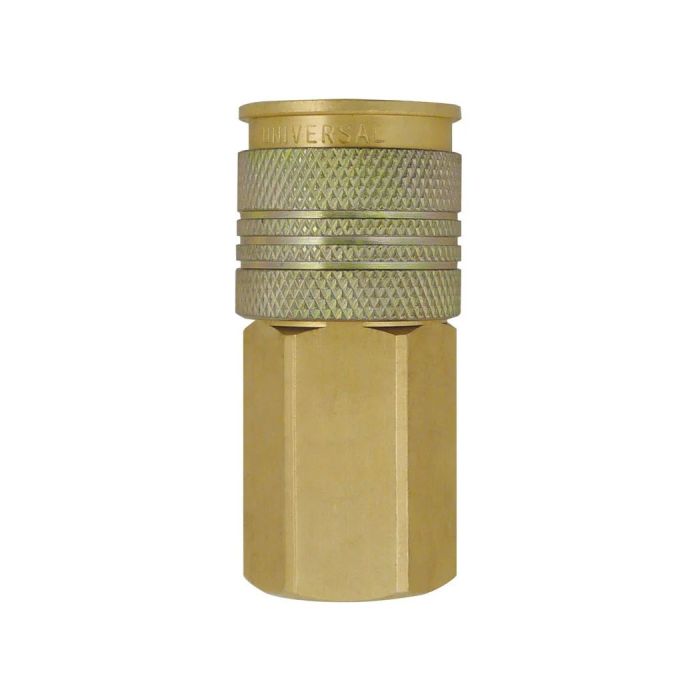

COUPLEUR RAPIDE 3-EN-1 x 1/4"NPT FEMELLE

Brand:
TOPRING

Features:
This universal automatic-connect coupling is compatible with 1/4 in Industrial, 1/4 in Aro 210 and 1/4 in Truflate profile plugs. The knurled sleeve provides a secure grip for easy handling.

Specifications:
Maximum Rotation Angle: 360°
Rotation Capacity: Continuous
Color: Gold
Nominal Air Flow (SCFM): 35
Compatible Fluids: Air
Inlet Connection Gender: Female
Release Ring Material: Nickel-Plated Steel
Spring Material: Stainless Steel
Locking Balls or Rollers Material: Nickel-Plated Steel
Seal Material: Nitrile/NBR
Body Material: Brass
Disconnection Method: Under Pressure
Swivel: No
Maximum Inlet Pressure (PSI): 150
Product Series: 88
Sub-Brand: CONNECT
Outlet Connection Sub-Type: Aro 210 Profile, Industrial Profile, Truflate Profile
Inlet Connection Sub-Type: NPT
Nominal Outlet Size (Imperial): 1/4 in
Nominal Inlet Size (Imperial): 1/4 in
Maximum Fluid Temperature (°C): 71
Minimum Fluid Temperature (°C): -40
Product Type: Pneumatic Quick Couplings
Inlet Connection Type: Threaded
